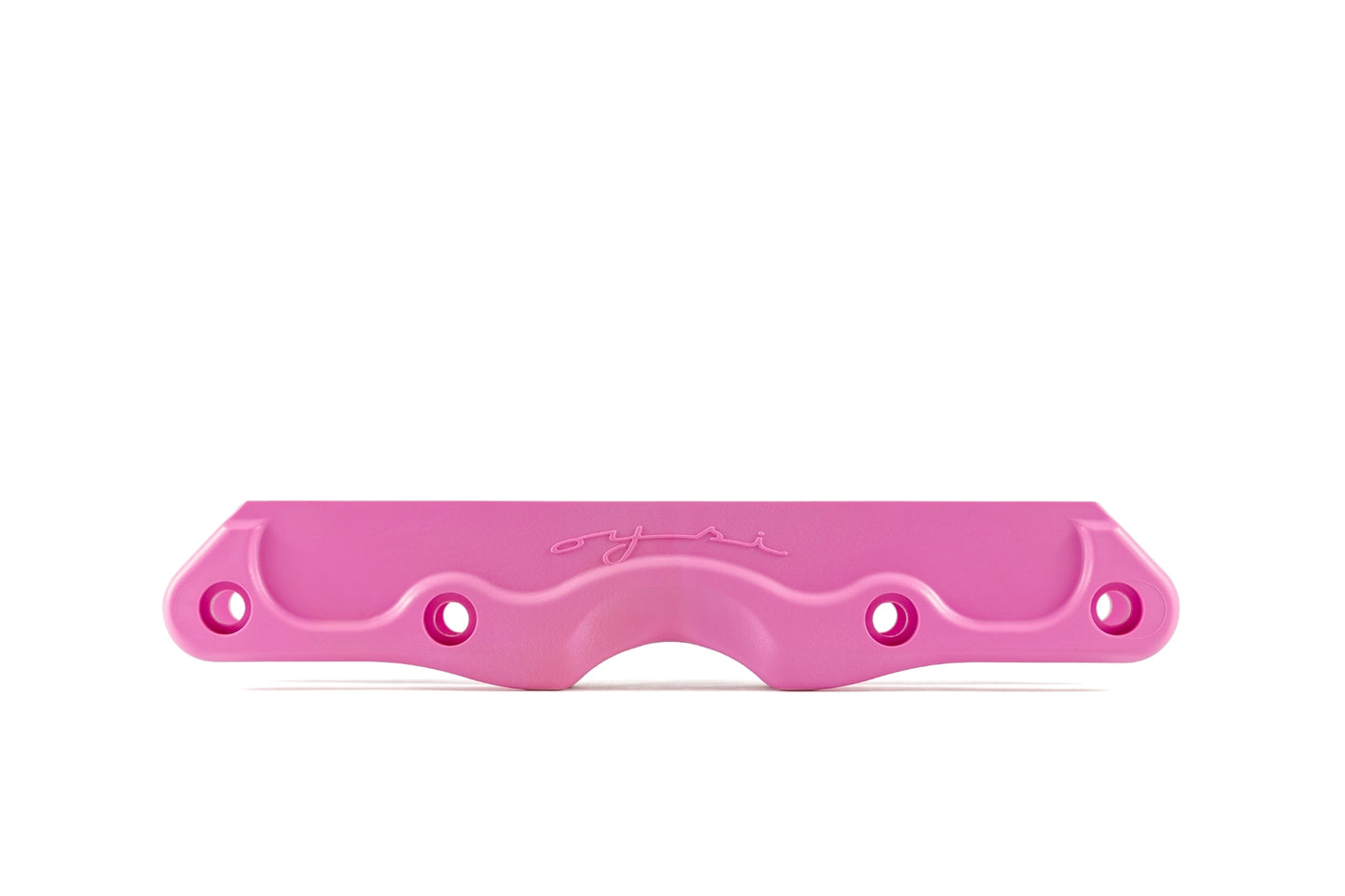

Oysi Medium Chassis - Bubblegum (257mm or 269mm)

Regular price
$80.00
Regular price
Sale price
$80.00
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

Medium Chassis65

Available in either 257mm or 269mm

*Eliminate installation frustrations for just $5!

*****Customer have reported above average difficulties setting this frame up. We have the tools and expertise to set this frame up for you!

Frame spacers have been hard to install due to the very tight tolerances of the frame. We can have these installed for you saving you assembly time and irritation.*****

Looking for wheels to go on this frame?

We recommend checking out the Apex 65mm wheels for the outer wheels and the Dead 58mm wheels for the inner wheels!  Apex also makes an Apex Wheels for Oysi Medium Chassis v2 featuring their 65mm and 58mm wheels.




Directly from Oysi:

While adhering to the same performance design principles as the original Oysi Inline Skating Chassis, we’ve packaged a similar skating experience into a more compact form to complement smaller boot sizes.

The Oysi Medium Chassis65 is designed to ride flat using a combination of 65mm outer and 58mm inner wheels and is available in either 257mm or 269mm wheelbase lengths, both providing the same thoughtfully contoured groove centered between a 127mm middle wheel split.

Effective use of the space beneath your feet yields an uncompromised groove, responsive control, and low profile.

Featuring a 5.7mm lower ride height and 4.2mm reduction in groove height, the Oysi Medium Chassis65 is designed to hug your soul.

Designed and Manufactured in the USA. (Sold in Pairs.)

Familiarize yourself with the chassis by reviewing the Technical Specifications.

Please review our Quick Reference Rocker Table and utilize our Rocker Calculator to help with determining your wheel selection.

( Max Outer Wheel Diameter: 68mm | Max Inner Wheel Diameter: 60.00mm )

Fitment of 63mm through 68mm wheels on the outer axlesRequires Modification of the Soul Plate to create a clear recess above the chassis mounting plane. ( Soul Plate Modification Template )

For sizing information please see our Chassis Fit Templates

Please note that the inner sidewall spacers usually require a press fit. Demonstration of how to do this using common tools is provided here – How to Press Fit Spacers

Each Pair Includes:

  • 8 x Standard 8mm Axles
  • 16 x Metal Sidewall spacers (How to Press Fit Spacers )
  • 4 x ISO Class 10.9 UFS Fastener (12mm length)
  • 4 x ISO Class 10.9 UFS Fastener (16mm length)
  • 16 x Nylon Washers for Coping Mode
  • 100% Recycled Retail Box Made in the USA
  •
