SOLA EQUIPMENT - FREERIDE 80MM ALUMINUM FRAMES
Precision, Strength and Control.
The Solá Equipment Street Frames were born from a dialogue between Kyle Solá and Dominik Wagner regarding the optimal flat-rocker frame, and the reintroduction of a lightweight metal construction into street skating.
The feedback-driven development process led to the prototyping of the first development prototypes in 2015. With the valuable inputs from Dominik Wagner and Joe Atkinson, prototypes were continuously developed, tested and improved through to the first production in 2018.
TECHNICAL SPECIFICATIONS

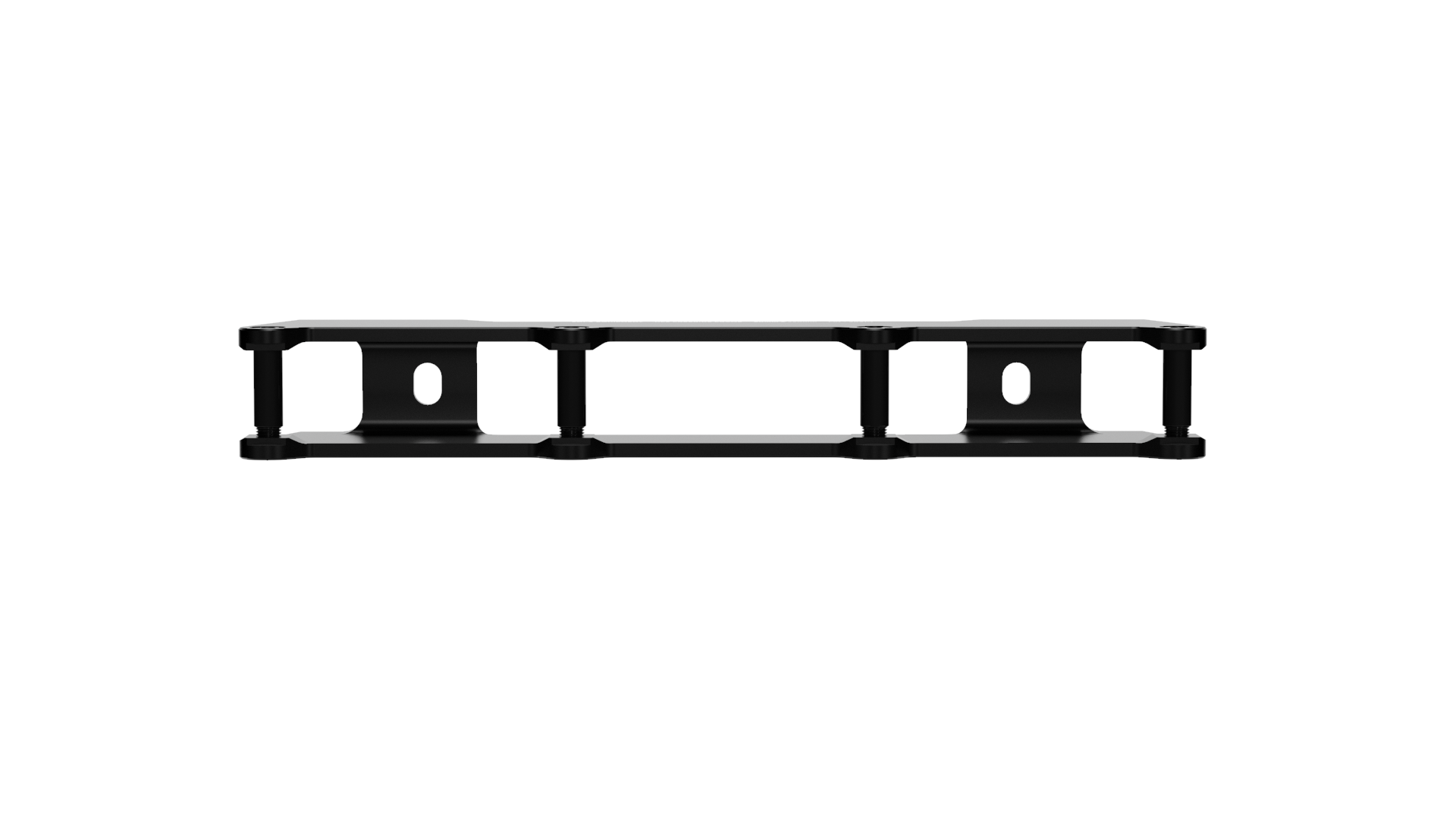

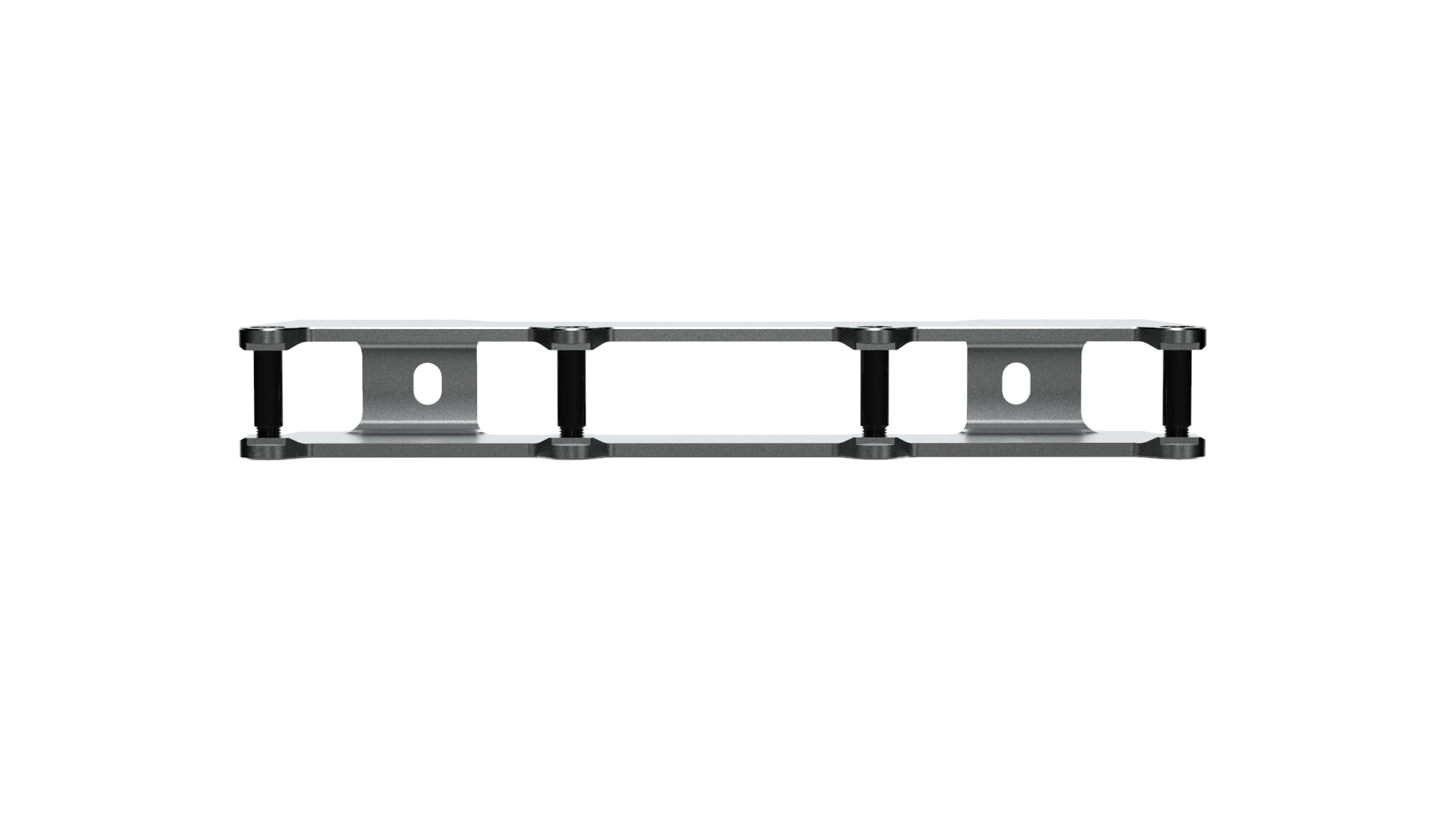

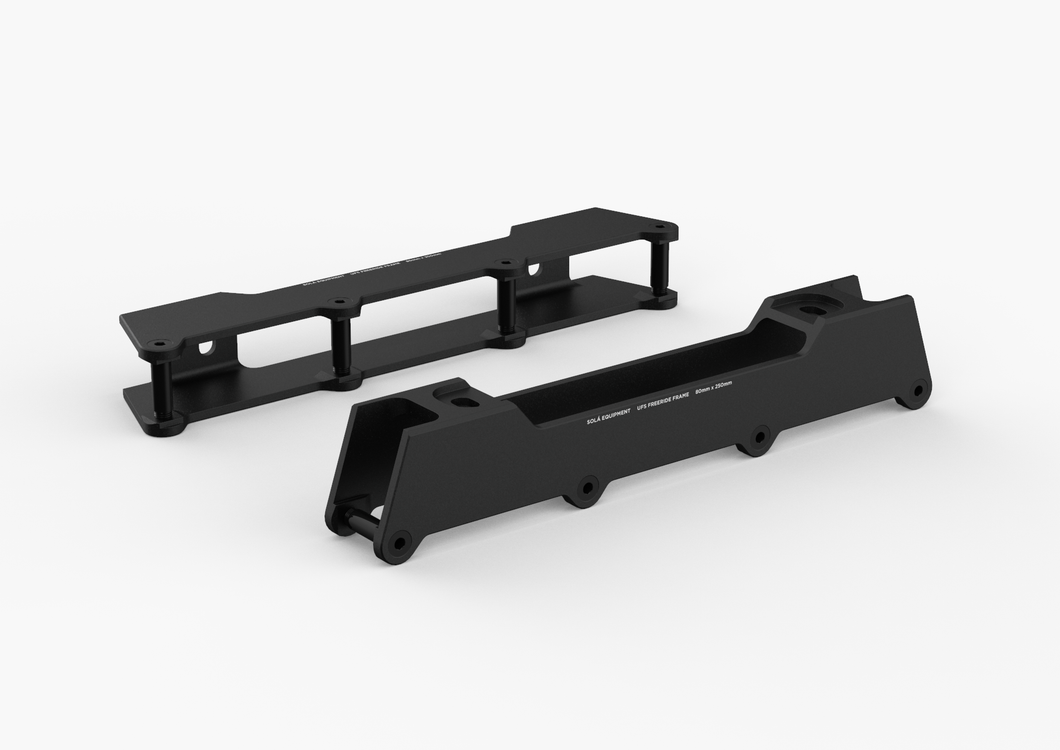

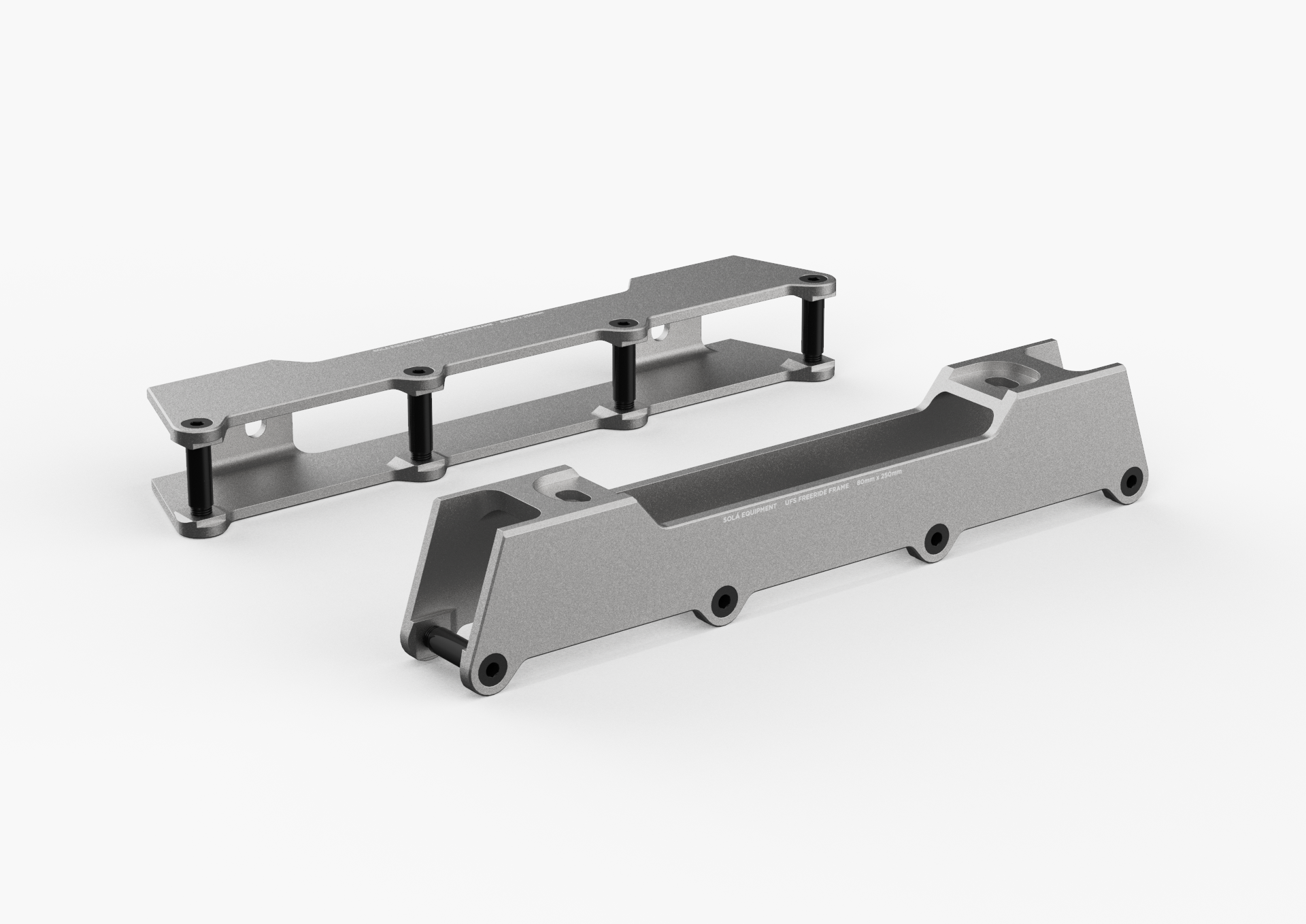

- Streamlined Frame Body
- Extruded 6061 T6 hardened aluminum, CNC milled into its final shape
- Treated with a surface-hardening anodized finish
- Laser engraved with model specifications and specific production lot number
- Universal Frame System (UFS) bolt configuration to fit all corresponding boots
- Max. Wheel Size - 80mm
- One-Way Axles - Version 2
- The CNC turned, Black Oxide Steel Alloy screw directly into frame walls, reducing weight and complexity.
- 10mm deep tool cavity helps to keep bolt heads from stripping with regular use
- A nylon patch is bonded to the threads, adding friction to resist loosening from vibration
- Two spare axles included in each package
SIZING
- 250mm wheelbase: Recommended for 11us and under
